Rod, Bearings and Piston

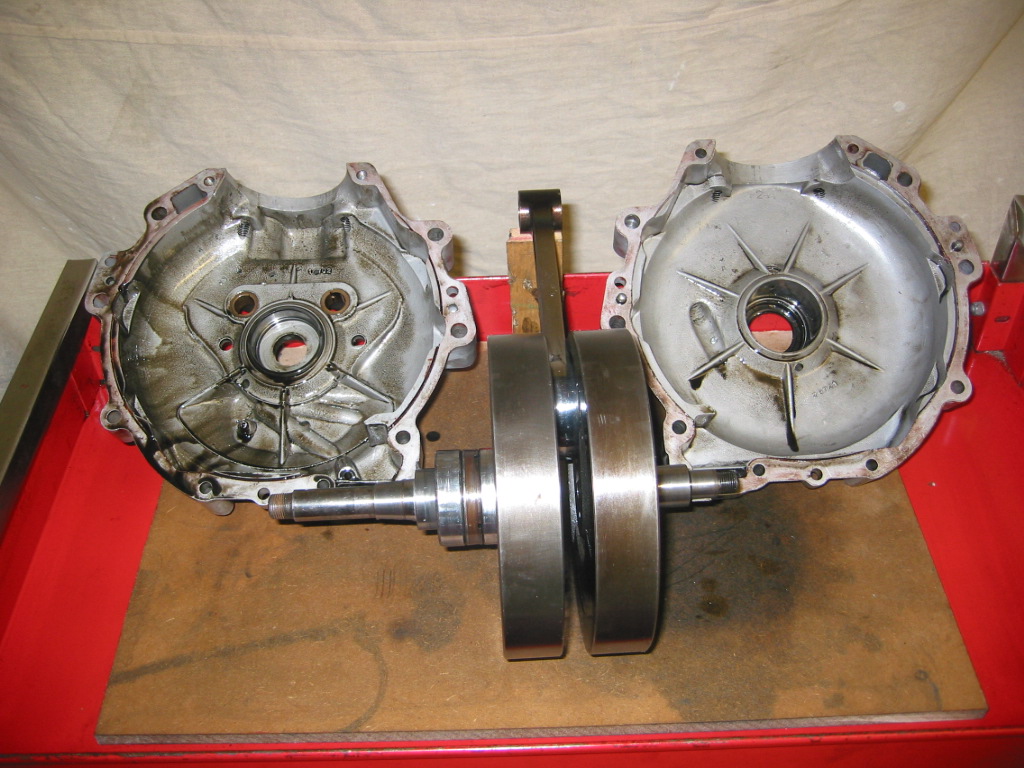

Polished rod, new big end and mains. No circlips on gudgeon pin, just nylon buttons to allow it to float. Piston machined slightly oval (like a slipper piston) This was to overcome slight piston to barrel interference due to high temp of modern fuel and increased differential expansion. Piston machined to accept all the new valve geometry.
